GFEVT750-R18高速熔斷器（20A-100A）750V

[附件: Download]

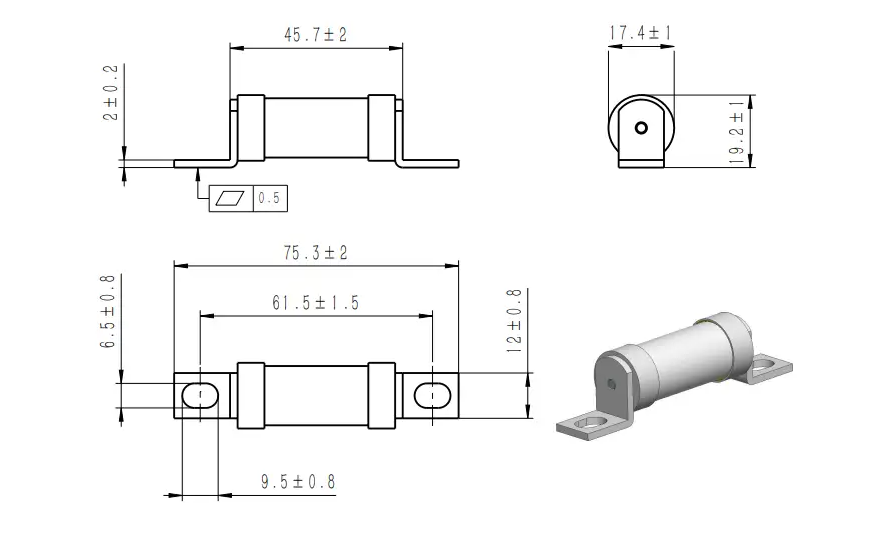

Dimensions (mm)

Description

Design for DC Applications
Excellent DC Performance
Superior cycling capability
Low Watt Losses

Standards & Approvals

References:
- UL 248.1 / UL 248.13
- IEC 60269.1 / IEC 60269.4
- GB 13539.1 / GB 13539.4
- JASO D622
Manufacturing Compliance:
- IATF16949 Quality System for Compliance with Automotive Requirements
Certifications:
- Reach Declaration Available Upon Request
- CE
- RoHS Compliant

Features & Benefits

Higher voltage rating provides overall system efficiency using smaller, more economical conductors while meeting the needs of higher voltage
Up to ten times faster opening under high fault current conditions helps assure reliable protection of circuits and components
Can be applied in parallel to realize greater ampacity within sizing guidelines
Excellent power of resisting voltaic impingement and environmental temperature tolerance
Exceptional resistance to mechanical vibration and impact resistance.

Fuse Ratings

Part No.	Fuse Amps	Average @50KA/750Vdc		Power Loss (W)		Approvals
Part No.	Fuse Amps	A2s Melting	A2t Clearing	80%	100%
GFEVT750-10A-18R	10A	7.56	15.60	0.75	1.50	○ Pending
GFEVT750-16A-18R	16A	7.56	61.20	1.10	2.00	○ Pending
GFEVT750-20A-18R	20A	34.56	277.20	1.25	2.50	○ Pending
GFEVT750-25A-18R	25A	34.56	315.60	1.60	3.00	○ Pending
GFEVT750-32A-18R	32A	36.72	379.20	2.50	4.50	○ Pending
GFEVT750-35A-18R	35A	37.80	414.00	2.75	5.00	○ Pending
GFEVT750-40A-18R	40A	116.64	552.00	3.20	6.00	○ Pending
GFEVT750-45A-18R	45A	123.12	621.60	3.45	6.50	○ Pending
GFEVT750-50A-18R	50A	136.08	828.00	4.00	7.50	○ Pending
GFEVT750-63A-18R	63A	160.92	1080.00	5.30	10.00	○ Pending
GFEVT750-70A-18R	70A	249.48	1368.00	6.20	12.00	○ Pending
GFEVT750-80A-18R	80A	297.00	2160.00	7.80	15.00	○ Pending
GFEVT750-90A-18R	90A	451.44	3024.00	9.50	18.00	○ Pending
GFEVT750-100A-18R	100A	558.36	4032.00	10.30	20.00	○ Pending
